Description
- 4 keys: This remote control duplicators allows you to copy 4 functions to meet your different needs.

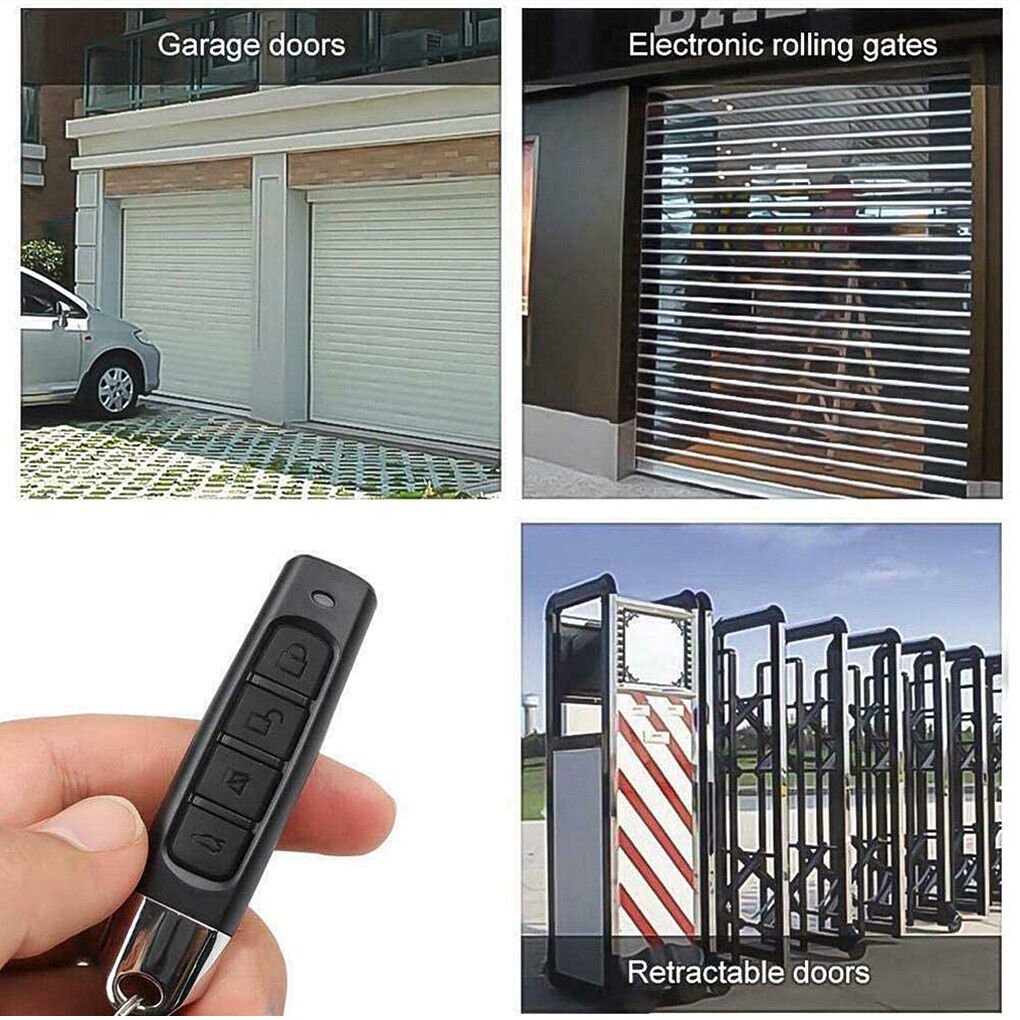

- Fits device: This 433.92 Mhz copier is a good fit for electric door, roller
- door, garage door and so on.
- Wide compatibility: This remote control duplicators is suitable for
- many kinds of types, and is convenient to copy and use.
- Small and compact: This 4 key duplicators is portable, won't take much space, so you can easily carry it when going out.
- Long range: This remote control garage door duplicators features a
- stable and fast signal and the control distance is up to 150m.
- Color: Black
- Type: Auto Remote Control Duplicator
- Material: Metal+Plastic
- Working voltage: DC12V (27A battery is not including)
- Operating Current: ≤ 8mA
- Working frequency: 315/433MHz
- Modulation Mode: ASK (AM)
- The transmission power: ≤ 100mW
- Emission Distance: 50-100 m (proof)
- The encoding type: Self Copy
- The working temperature: -10 ° C to +50 ° C
- Works with the following remote control IC modules (please check your original remote control before ordering),and your remotes also should be Fixed code or Learning code. AX5326-3. PT2262. PT2260. EV1527. FP527. PT2242. HT600. HT680. HT6207. HT6010. HT6012. HT6014. AX5326 4. SMC918. PT2240. HT6013. HT6013. HT12D,etc
- Application: Garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

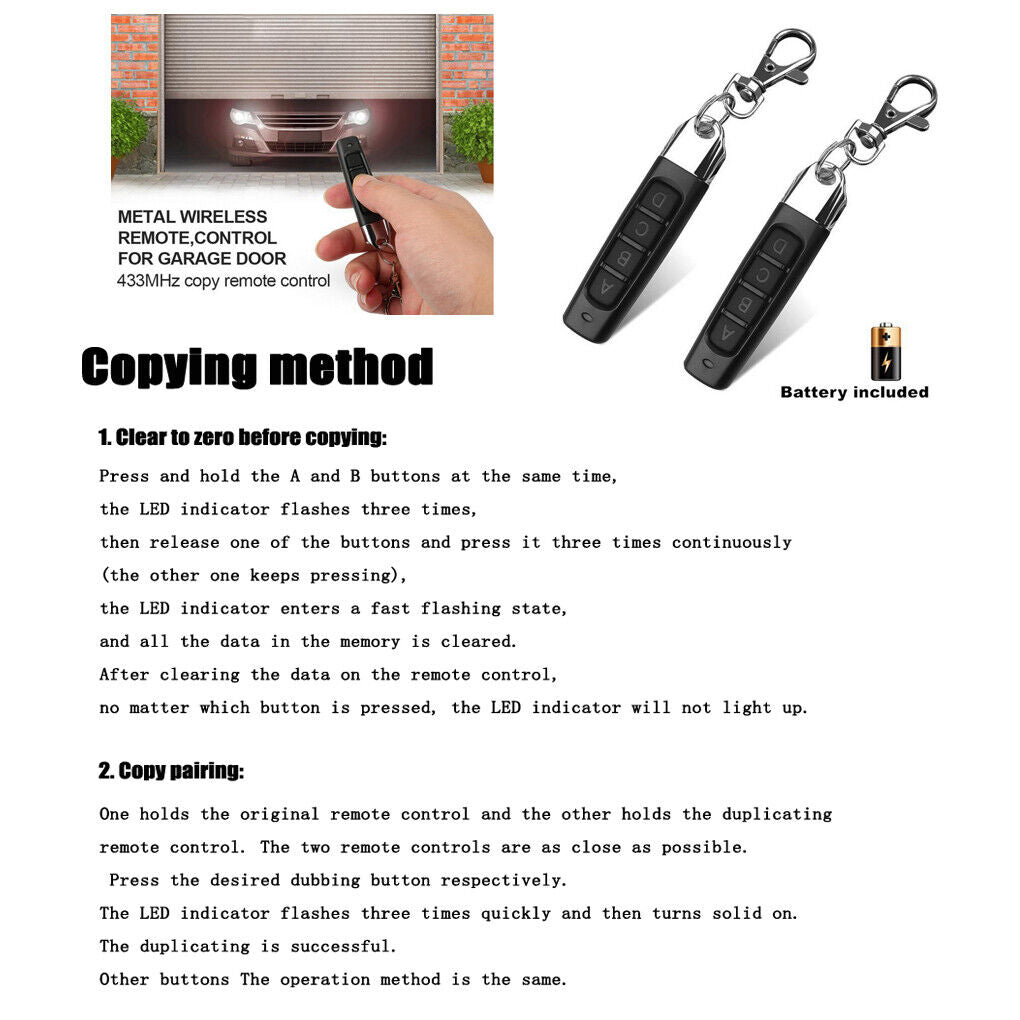

Step 1 –Delete the existing code of our remote duplicator
1)Click and Hold A and B buttons together - Led will flash 3 times
2)Keep holding A button and release B button
3)Keep holding A button and push B button 3 times, Led will start flashing Non-stop
Now press any key on the remote control, LED lights are not bright, so delete code success; if you press the button LED lamp is lit, indicating that the original code is not deleted!
Step 2 - Clone your original remote
1)Put both remotes Into back to Back position. Make sure they have direct-contact
2)Click and hold 1 button on your original remote and 1 button on your clone remote. Keep holding until led will make 2 blinks then 3 blinks then goes into Steady and you have successfully cloned. ( the left keys follow the same above operation)
If for some reason the clone does not go further then 2 blinks , it means the signal does not go through, please shift the remote slowly up and down until you get the point where it will go through.
- 1 PCS 433 Mhz Remote Control Duplicators.
- There might be a bit of color distortions due to different computer resolutions.
- There might be a slight error due to different hand measurements.
