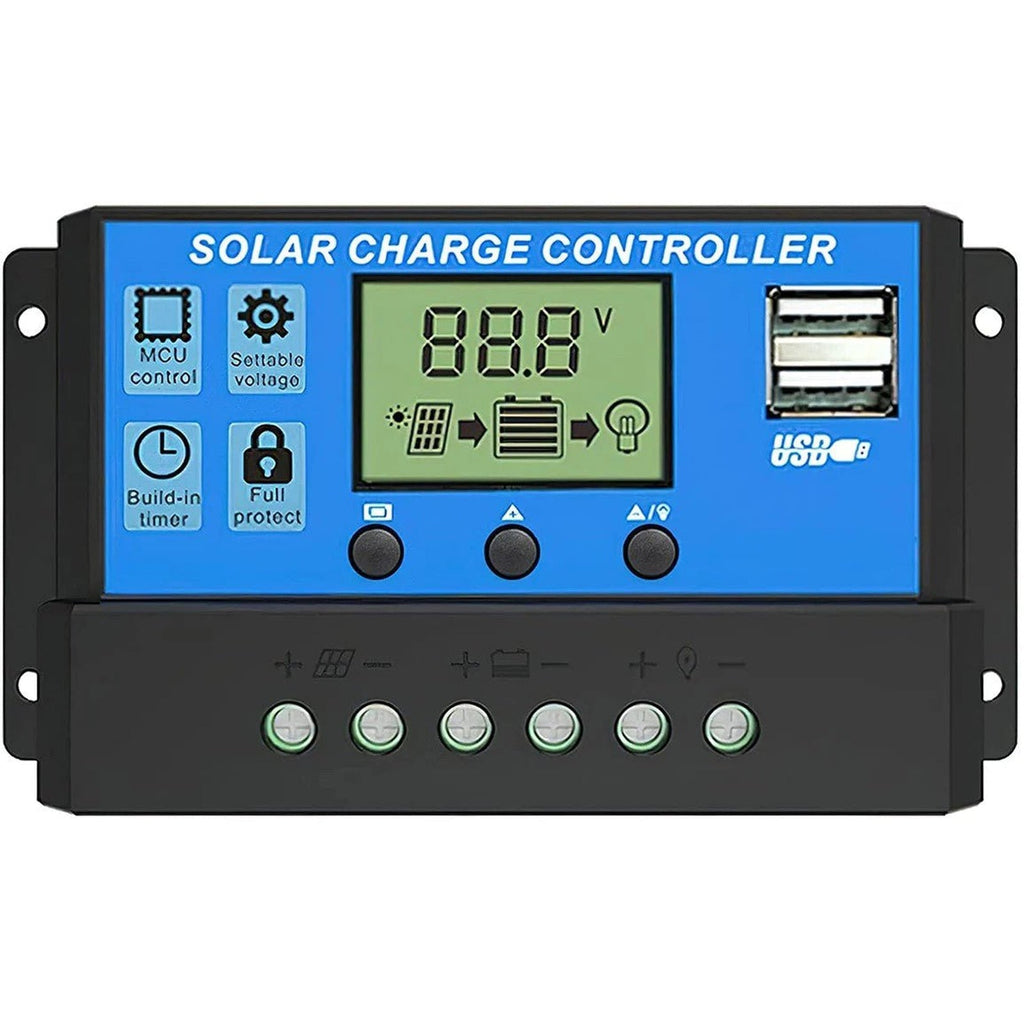

Description
Features
- Solar Panel 12V/24V 20A/
- Build-in industrial micro controller.

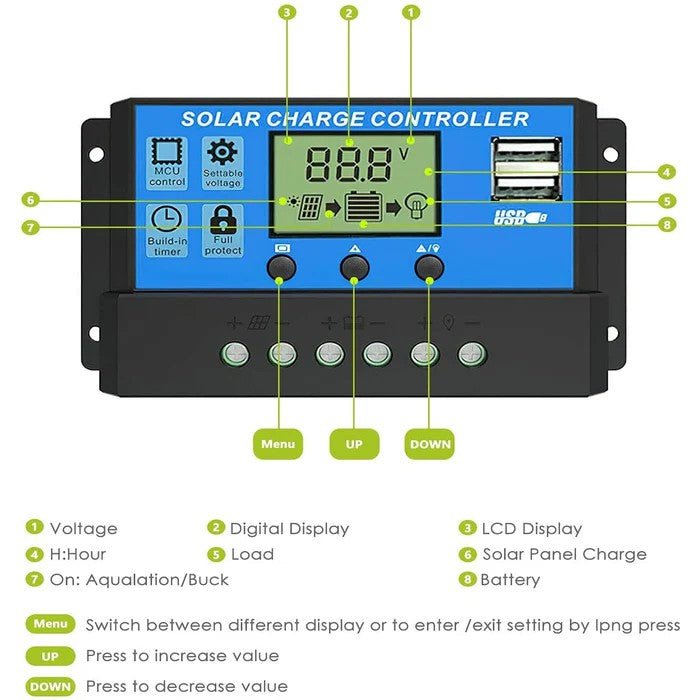

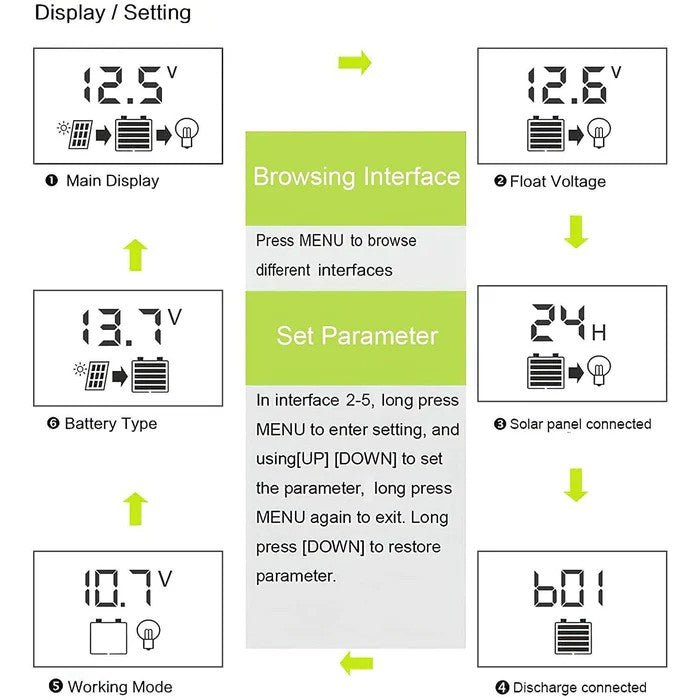

- One-key setting, auto memory function. digital display,

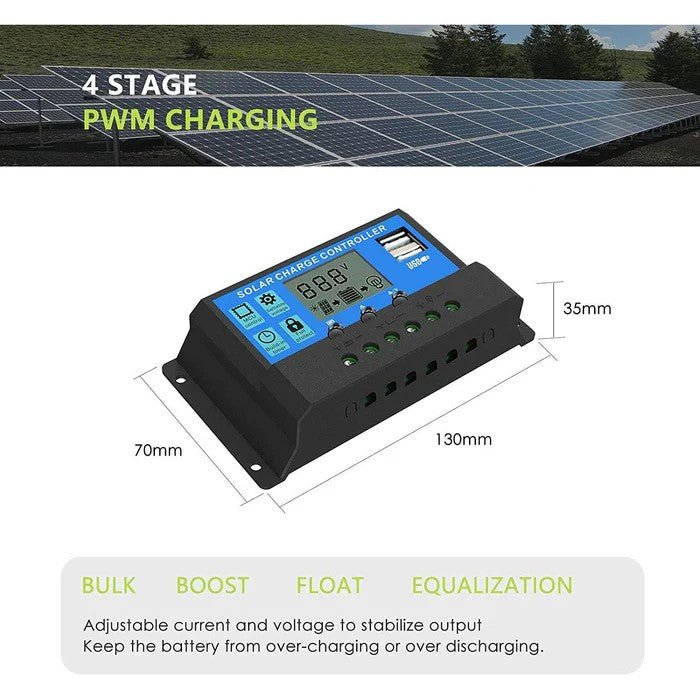

- 4-stage PWM charge management.

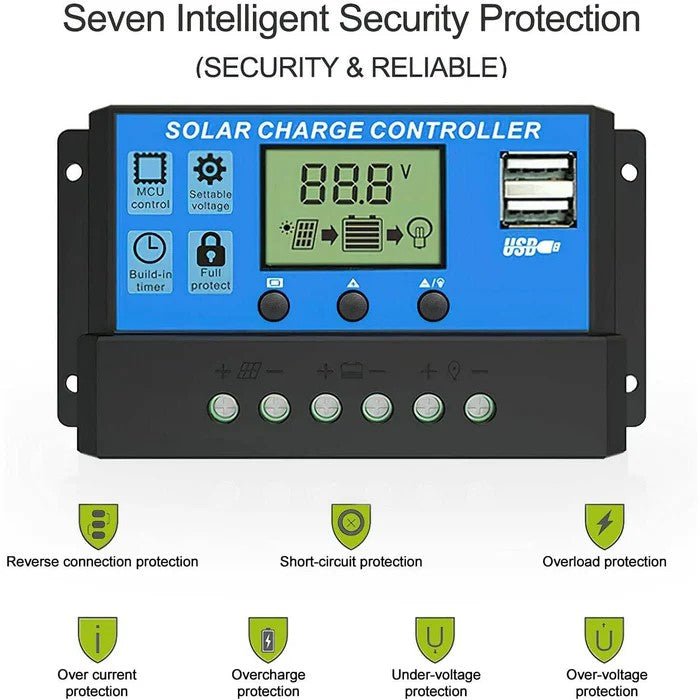

- There are Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections
- reverse current protections, low heat productions.
- With double USB ports charge
- The Regulator is only suitable for lead acid batteries: OPEN, AGM, GEL
- Max. PV Input Power:
- 20A: 260W (12V) 520W (24V)
Safety Instructions:
- Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
- The battery cable should be as short as possible to minimize loss.
- The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
- make Sure it is not suited for nickel metal hydride, lithium ions or other batteries.
- The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

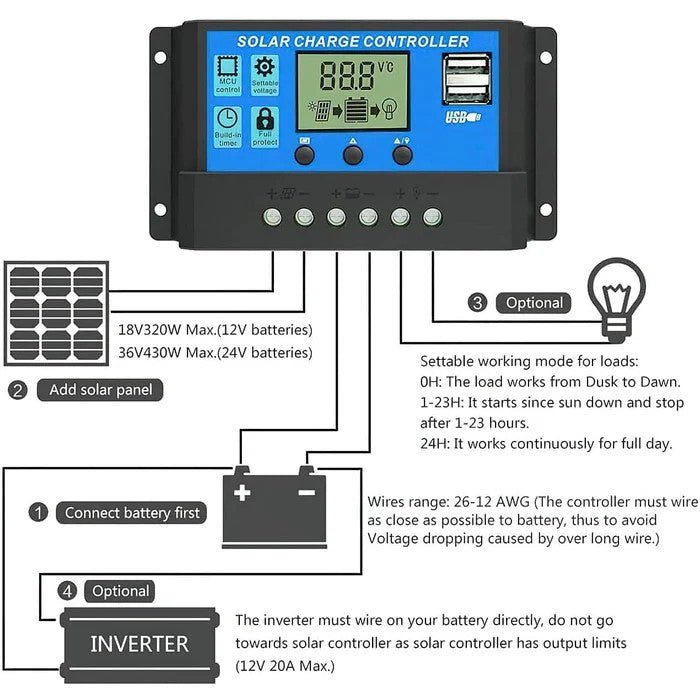

- System Connection:
- Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery.
- Connect the photovoltaic module to the regulator - plus and minus.
- Connect the consumer to the charge regulator - plus and minus.
Specification:
- Rated Voltage: 12V 24V Auto
- Application: Solar System Controller
- Current: 20A
- Size: 150*78*35mm
Package:
- 1x Solar Panels Battery Charge Controller
- 1x User Manual
