Autel GBox G-BOX2 Acessory Tool Benz & BMW Adapter GBox2 Mercedes Benz All Key Lost Tool Used with MaxiIM IM508 IM608

Autel G-Box Accessory Tool

• The Autel G-Box is designed to be used on for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to save time for reading the ECU data from W204 and W207 EISs by over 85%.
• The G-BOX2 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal.
• The G-BOX2 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
• The G-BOX2 is compatible with the Autel's advanced diagnostic tablets support IMMO and key programming functions.
• Differences between G-box2 & G-box.

Autel G-Box Main Features:

• 1. For Mercedes Benz All Keys Lost, Faster Password Calculation
• 2. Used with IM608
• 3. Used for Faster Mercedes ECU data and EIS password calculation
• 4. For Mercedes DAS3 can EIS / EZS all keys lost
• 5. Reduce time reading W204 ECU data & W207 EIS by over 85%
• 6. No need to remove and reinsert the key for W221 & W164 after 2009 models
• 7. For BMW DME / DDE ISN reading and writing in boot mode
• 8. G-Box is compatible with both the Autel MaxiIM IM 608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400

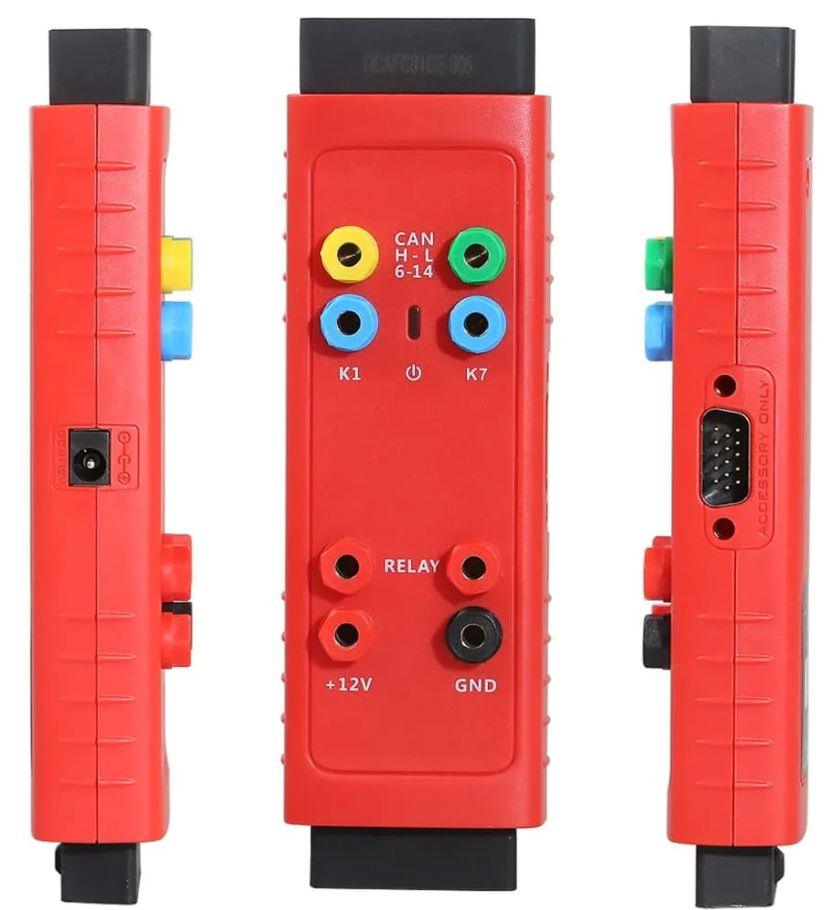

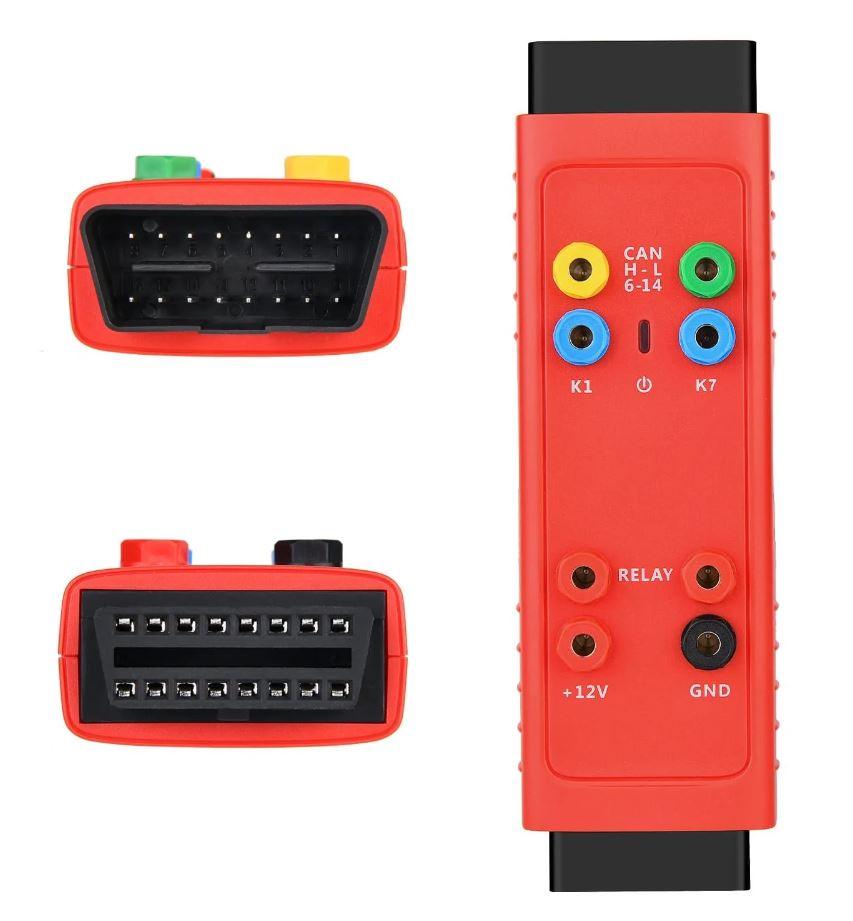

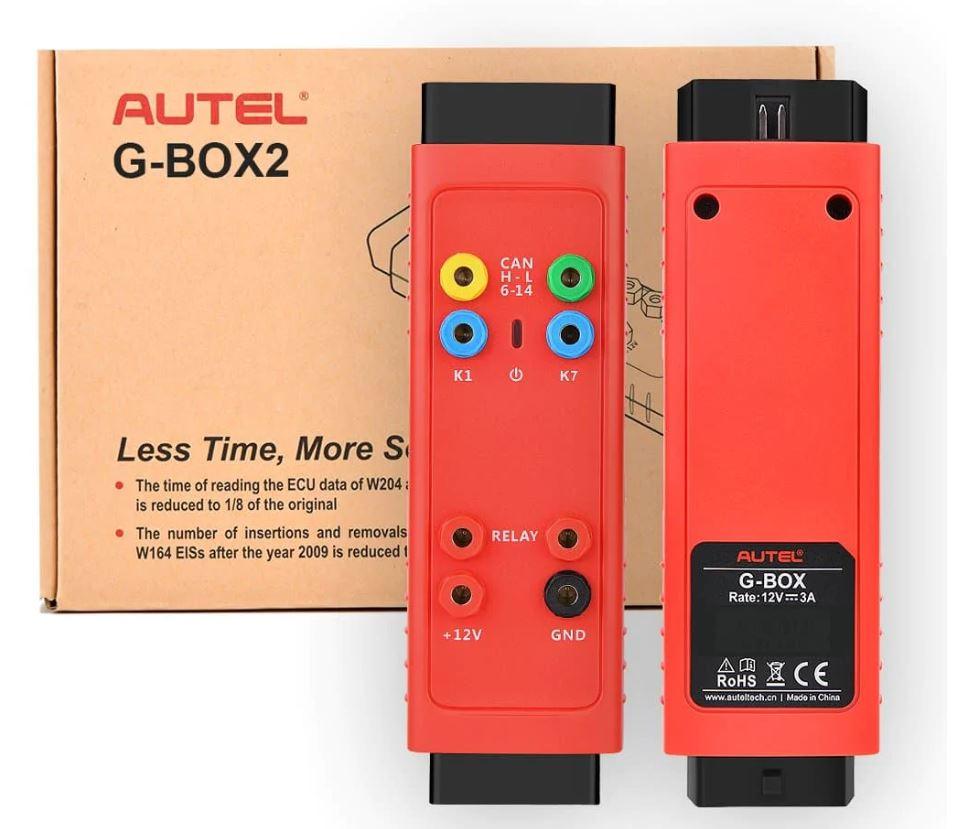

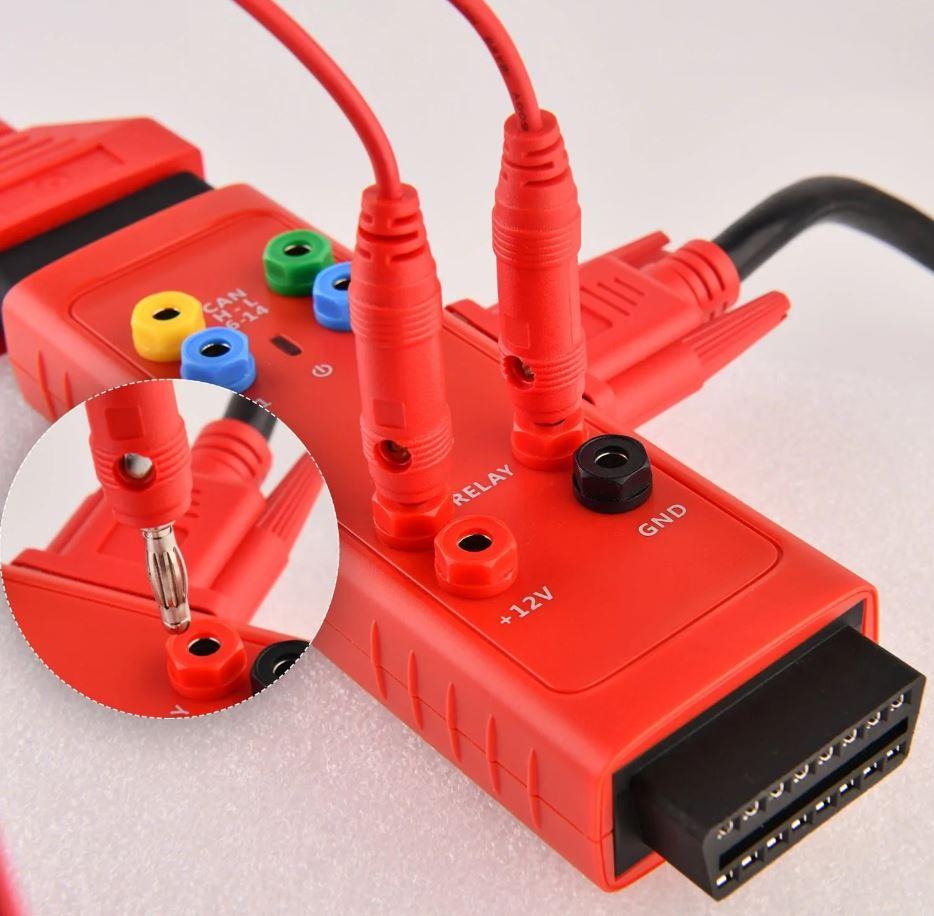

Autel G-Box Details Instruction:

1. DC Port -Provides +12 DV power supply
2. Can-H Port: Universal Can Bus interface, connects with OBDII PIN6
3. K1 Port: Universal K-Line interface, connects with OBDII PIN1
4. Status Indicator: Indicates the current operating status
5. Relay Ports: Connect with dedicated relay cables
6. +12V Power Port: Universal power input/ output port
7. OBDII Connector: Connects to the vehicle's OBDII directly or via a dedicated extension cable
8. OBDII Female Connector: Connects to the main cable of Autel Diagnostic Tool
9. Can-L Port: Universal Can Bus interface, connects with OBDII PIN14
10. K7 Port: Universal K-Line interface connects with OBDII PIN7
11. GND Port: Universal Power Input/ Output Port
12. OB15 Port: Used with dedicated BD15 Cable for reading and wrting multiple types of ECUs

Why Buy Autel G-BOX --- Small is Smart!

• 8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;
• 4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.

• W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)

• EXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.

• 23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.

How does Autel G-Box Work?

A. OBDII Operation When All Keys of Mercedes-Benz Vehicle Are Lost

(This method is suitable for Mercedes-Benz W204 , W207, W216 and W164 EISs after the year 2009)

• 1. Connect the G-Box to vehicles's OBDII
• 2. Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable
• 3. When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable
• 4. Connect the G-Box to the Autel Diagnostic Tablet

B. Desktop Operation When All Keys of Mercedes-Benz Vehicle are Lost

(This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet.)

• 1. Connect the G-Box to the Mercedes-Benz EIS using the supplied DB15 Cable
• 2. Connect to the DC port of G-Box using a power adapter (DV 12V)
• 3. Connect the G-Box to the Autel Diagnostic Tablet

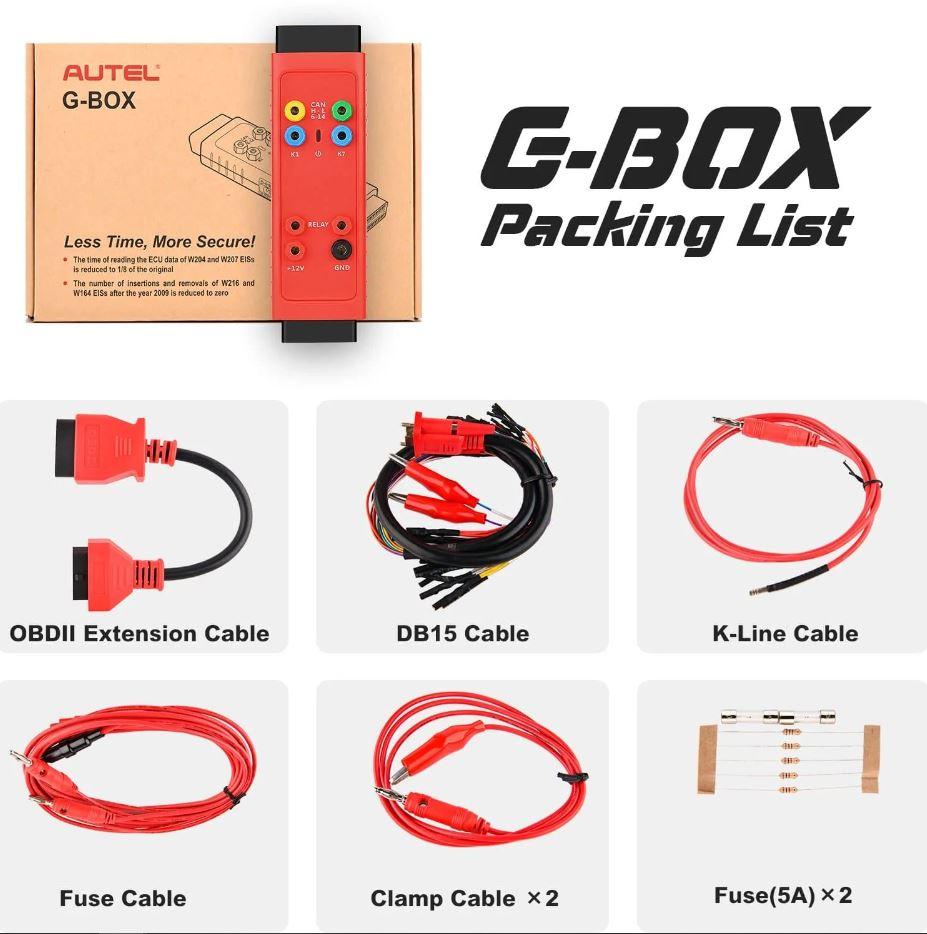

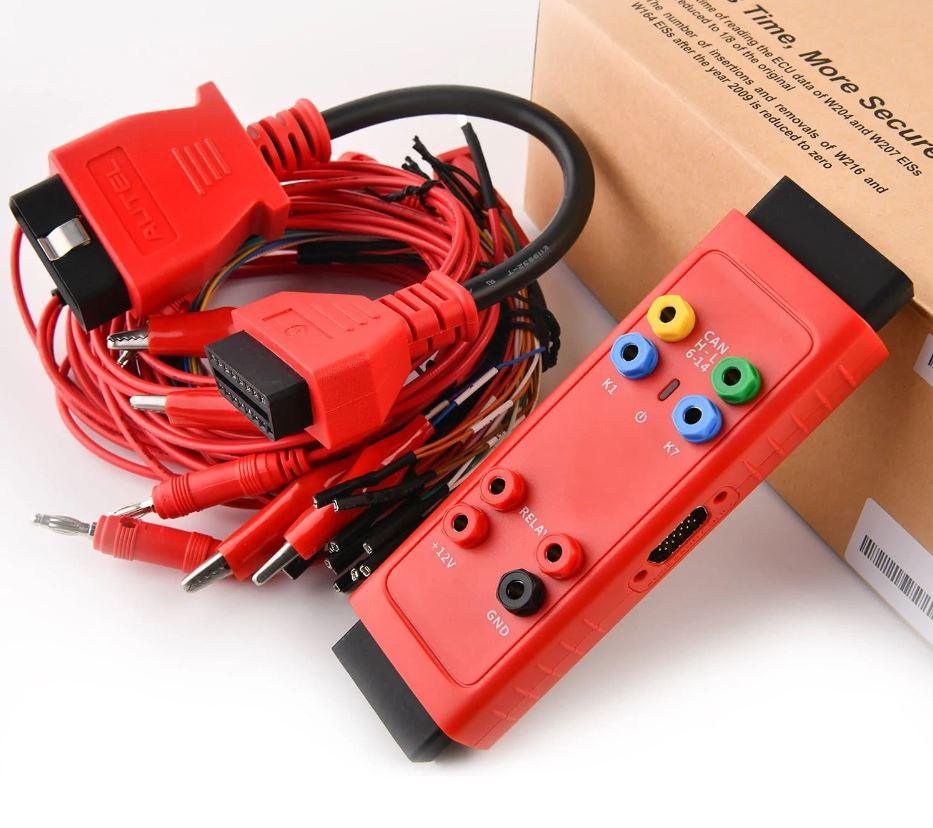

Autel G Box Package Content:

• 1pc x Autel G-BOX Accessory Tool
• 1pc x Clamp Cable
• 1pc x K-Line Cable
• 1pc x Fuse Cable
• 1pc x OBDII Extension Cable
• 1pc x DB15 Cable
