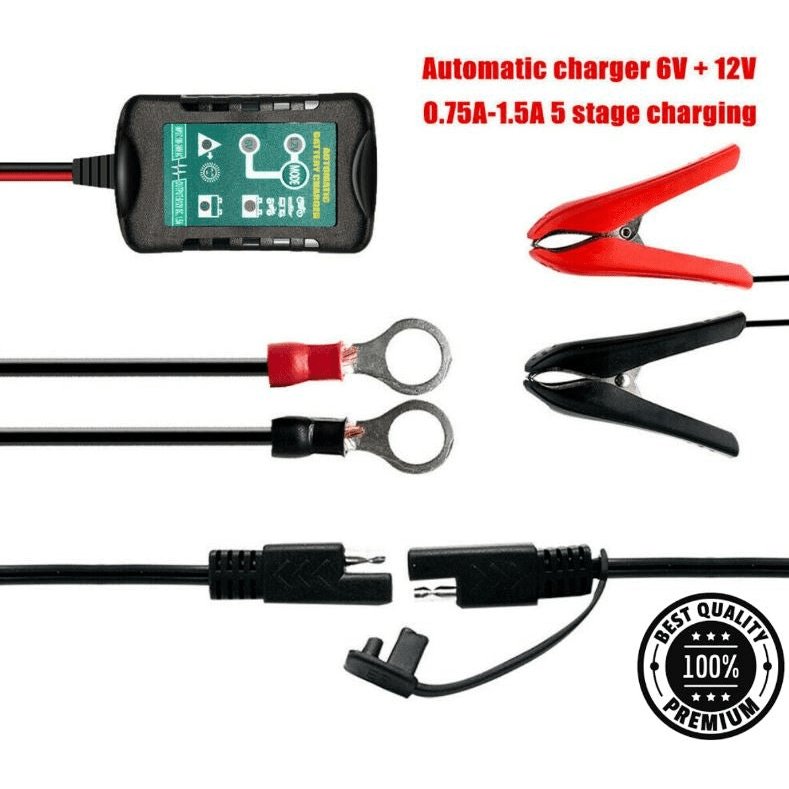

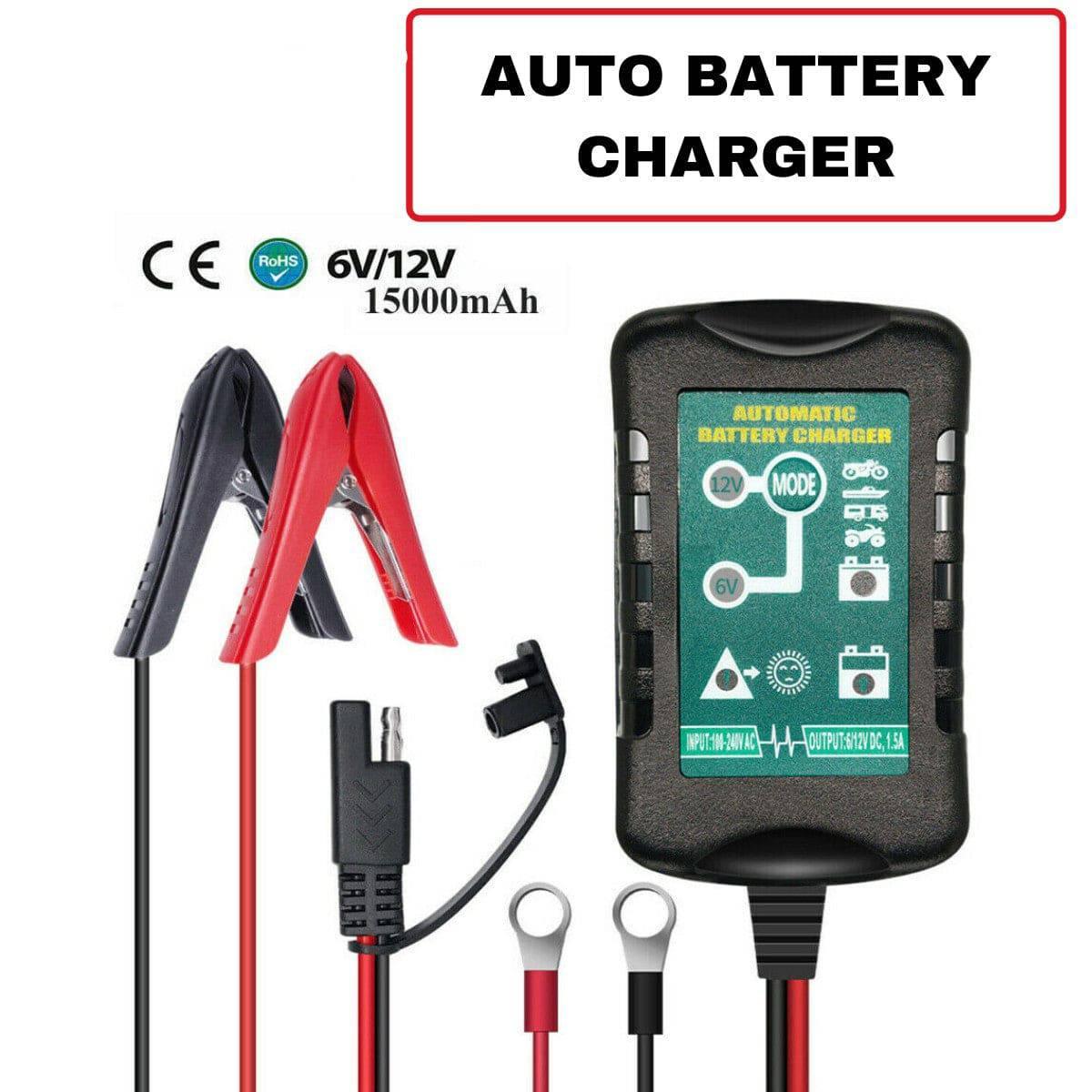

Description
- Input Voltage：100-240V AC @ 50/60HZ 1.0A
- Output Voltage：6V/12V DC, auto detection
- Output Current Rating：0.75A-1.5A
- Working Temperature：-10~+50 ℃
- Size: 85x52.5x38mm
- Case: ABS PC945
- Weight: 200g
- Battery range: 7-60Ah
- Efficiency: App. 80%
- Polarity protection: Yes
- Output short protection: Yes
- Non battery link protection: Yes
- Over voltage protection: Yes
- Over temperature protection: Yes
- Compliant standards: CB,CE, IEC60335, EN61000, EN55014
- AU plug
- Fit for: Most types of lead acid batteries: SLA/GEL/AGM 6V 7-60Ah. VRLA/WET battery 12V7-40AH. Car, Marine, motorcycle, electric vehicle; electric tools, emergency light, R/C toys; portable electronics devices; field detection instrument, etc.
OPERATION
1. This charger has the ability to automatically charge 6v or 12V volt lead acid battery.

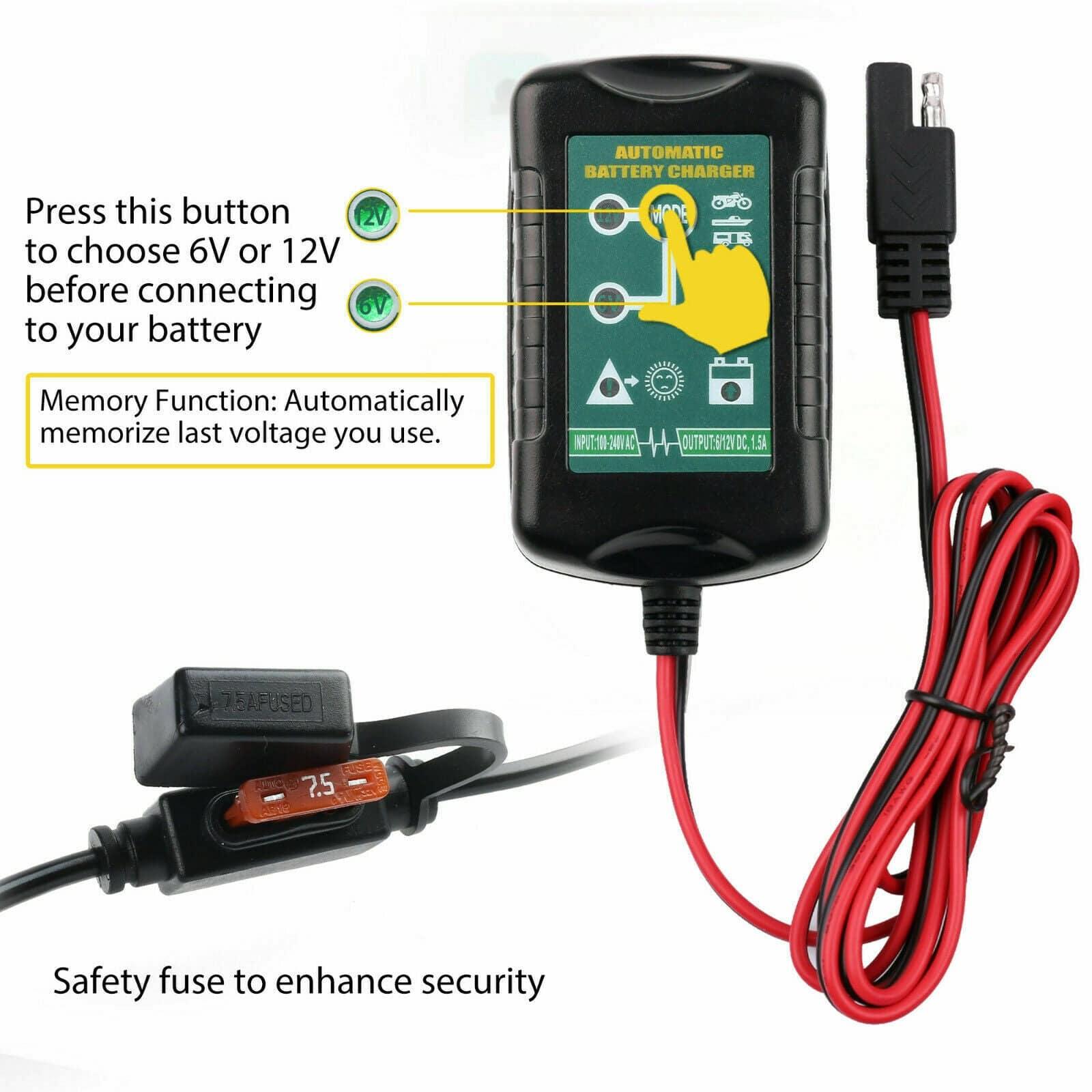

2. Press the key to switch to 6V or 12V charging mode the charger will sense the battery voltage.
3. Totally discharge battery (below 2 volts) or bad battery, the battery charger circuitry will not start due to its internal safety circuit and the fault indicator light will flash.
4. The charger completely automatic and can be left on whenever input power is made available to the charger, the charger output depends on the condition of the battery.

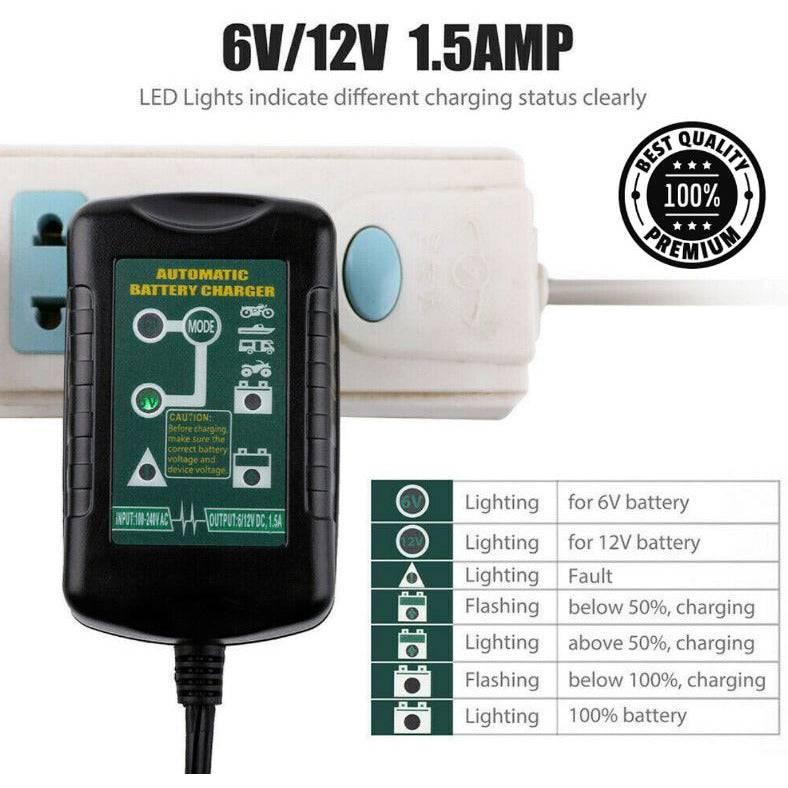

5. When the battery is fully charged, the indicating light will turn green and the charger will switch itself to a storage charge mode and will automatically monitor and maintain the battery at full charge.
SAFETY PROTECTIONS:
- Overcurrent Protection,
- Overvoltage Protection,
- Short Circuit Protection,
- Overcharge Protection,
- Temperature Control,
- Intelligent Repair,
- Reverse Protection,
- Ultra Low Standby Power Consumption,
- Flow LCD Display,
- One-Click Wake-Up, etc.

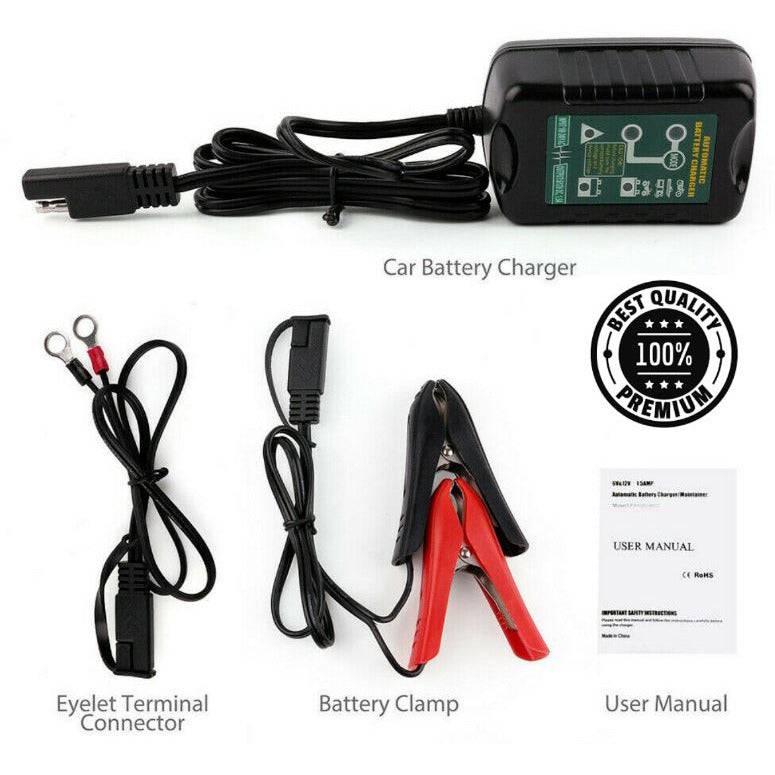

PACKAGE:
- 1 * Battery Charger(AU plug with a global adapter)
- 1 * English User Manual
NOTE:
- Charge 6V and 12V lead acid battery/SLA/VRLA/GEL/AGM rechargeable battery only.
- Don't expose the product to rain or humidity to prevent from electric shock.
- It is normal if the product gets slightly hot when using.
- Keep the product out of children's reach.
- Don't remove the cover to prevent from being electric shocked
