Description
- Simulated Sine Wave Output
- LCD Status Display
- USB Connectivity Port
- Serial Connectivity Port
- Line-interactive UPS Topology
- Generator Compatible
- Automatic Voltage Regulation (AVR)
- High-speed Ethernet Data Transmission
- Surge and Spike Protection
- PowerPanel Management Software
- Energy Saving Technology
- Normal input voltage (Vac) - 230 ± 10%
- Output Capacity (Watts) - 390
Specifications:
| Phase | Single Phase |
| Form Factor | Tower |
| UPS Topology | Line-interactive |
| Energy Saving Technology | GreenPower UPS™ Bypass Technology |
| INPUT | |
|---|---|
| Generator Compatibility | Yes |
| Nominal Input Voltage ( Vac ) | 230 ± 10% |
| Input Voltage Range ( Vac ) | 167 ~ 295 |
| Input Frequency ( Hz ) | 50 ± 5 60 ± 5 |
| Rated Input Current ( A ) | 3.04 |
| Input Connector Type | IEC C14 |
| Detachable Power Cord Plug Type | AU x 1 |
| Power Cord Length (ft.) | 5 |
| Power Cord Length (m.) | 1.5 |
| OUTPUT | |
| Capacity (VA) | 700 |
| Capacity (Watts) | 390 |
| On Battery Waveform | Simulated Sine Wave |
| On Battery Voltage(s) ( Vac ) | 230 ± 10% |
| On Battery Frequency ( Hz ) | 50 ± 1% 60 ± 1% |
| Automatic Voltage Regulation (AVR) | Single Boost, Single Buck |
| Overload Protection | Circuit Breaker |

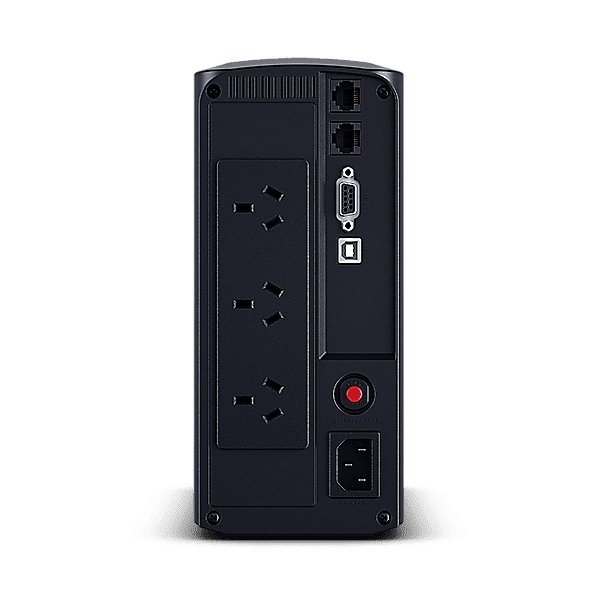

| Outlet(s) - Total | 3 |
| Outlet Type | AU x 3 |
| Outlet(s) - Battery & Surge Protected | 3 |
| Typical Transfer Time ( ms ) | 4 |
| BATTERY | |
| Runtime at Half Load ( min ) | 10 |
| Runtime at Full Load ( min ) | 1 |
| Typical Recharge Time ( Hours ) | 8 |
| Start On Battery | Yes |
| User-replaceable | No |
| Battery Type | Sealed Lead-acid |
| SURGE PROTECTION & FILTERING | |
| Surge Suppression ( Joules ) | 450 |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out |
| MANAGEMENT & COMMUNICATIONS | |
| LCD Panel | Yes |
| LCD Information Display | Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information |
| LCD Setting & Control | Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning |
| LED Indicators | Power On |
| HID Compliant USB Port(s) | 1 |
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Management Cable ( pcs ) | USB Cable x1 |
| Ethernet Data Transmission Speed | Up to 1Gb |
| Power Management Software | PowerPanel®Personal (Recommended) |
| PHYSICAL | |
| Enclosure Construction | Plastic |
| Color | Black |
| PHYSICAL SIZE - UPS MODULE | |
| Dimensions (WxHxD) (in.) | 3.9 x 8.9 x 10.2 |
| Dimensions (WxHxD) (mm.) | 100 x 227 x 260 |
| Weight (lbs.) | 11.33 |
| Weight (kg.) | 5.14 |
| SHIPPING DIMENSIONS | |
| Dimensions (WxHxD) (in.) | 11.81 x 13.19 x 5.63 |
| Dimensions (WxHxD) (mm.) | 300* x 335 x 143 |
| Weight (lbs.) | 12.7 |
| Weight (kg.) | 5.76 |
| ENVIRONMENTAL | |
| Operating Temperature (°F) | 32 ~ 104 |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 90 |
| Operating Elevation ( feet/meters ) | 0-9,843 feet (0-3,000 meters) |
| Storage Temperature (°F) | -4 ~ 122 |
| Storage Temperature (°C) | -20 ~ 50 |
| Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 90 |
| Storage Elevation ( feet/meters ) | 0-9,843 feet (0-3,000 meters) |
| Online Thermal Dissipation ( BTU/hr ) | 9.5 |
| Audible Noise at 1.0M from Surface of Unit ( dBA ) | 40 |
| CERTIFICATIONS | |
| Certifications | CE, RCM |
| RoHS | Yes |
In The Box:
- VP700ELCD UPS
- USB Cable
- User's Manual
- Product Registration Card
Please Note: It may vary according to the different regions and please refer to the user's manual for more information.
